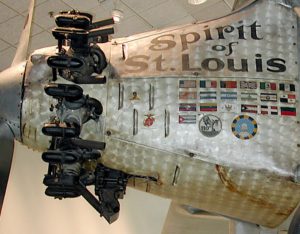

In the early days of aviation, aircraft designers took a simple approach to the problem of cooling aircraft engines. The engines were mounted with their finned cylinders out in the slipstream and cooled by the horizontal flow of ram air. This design is known as “velocity cooling” and was adequate for cooling the low-compression single-row radial engines of the time.

As engines grew more powerful and multi-row radials and horizontally opposed engines went into service, it became obvious that simple velocity cooling wasn’t up to the job. For one thing, cooling was uneven—front cylinders got a lot more cooling airflow than rear cylinders. For another, sticking all those cylinders out in the breeze created horrendous cooling drag. A better scheme was obviously needed.

That better system was known as “pressure cooling” and is the method used in all modern piston aircraft. Pressure cooling is accomplished by placing a cowling around the engine and using a system of rigid baffles and flexible baffle seals to produce the volume and pattern of cooling airflow necessary to achieve even cooling with minimum drag.

What do baffles do?

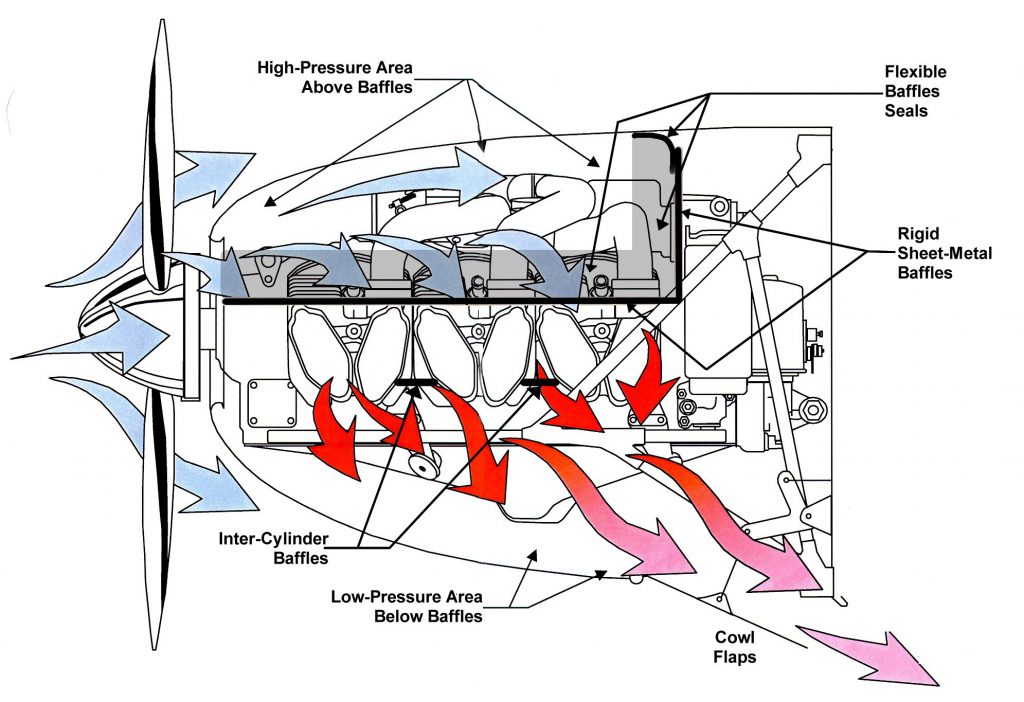

Our modern piston aircraft are powered by tightly cowled horizontally opposed engines. Inside the cowling, a system of rigid aluminum baffles and flexible baffle seals divide the engine compartment into two chambers: a high-pressure area above the cylinders, and a low-pressure area below the cylinders and behind the engine. Cylinders are cooled by the vertical flow of air from the high-pressure above the engine to the low-pressure below it. Cooling airflow is top-to-bottom, not front-to-back.

The volume of cooling airflow that passes across the cylinders is a function of the pressure differential between the upper (high-pressure) chamber and the lower (low-pressure) chamber of the engine compartment.  This pressure differential is known as “delta-P.” Cowl flaps are often used to modulate the cooling airflow. Opening the cowl flaps reduces the air pressure in the lower chamber, thereby increasing delta-P and consequently the volume of cooling air that passes vertically across the cylinder fins.

It’s important to understand that the pressure differential between the upper and lower chambers is remarkably small: A typical high-performance piston aircraft generally relies on a delta-P of just 6 or 7 inches of water—about 1/4 PSI! Aircraft designers try to keep this delta-P to an absolute minimum, because higher delta-P means higher cooling drag.

…and so what if they don’t?

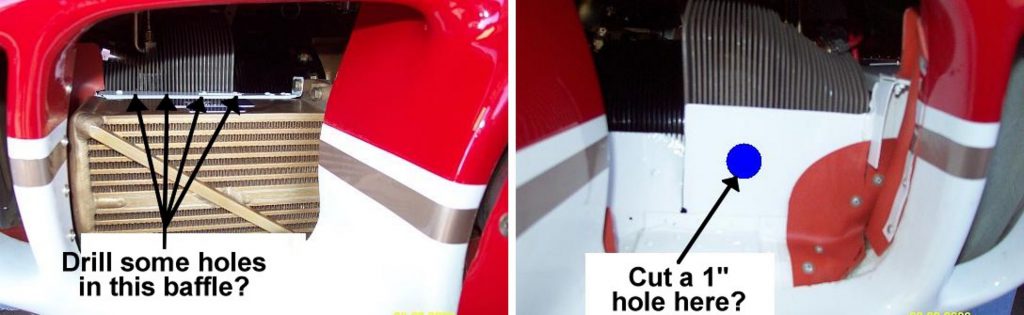

Because the pressure differential (delta-P) on which engine cooling depends is so very small, even small leaks in the system of baffles and seals can have a serious adverse impact on engine cooling. Any missing, broken, or improperly positioned baffles or seals will degrade engine cooling by providing an alternative path for air to pass from the upper chamber to the lower chamber without flowing vertically across the cylinder cooling fins.  (This is precisely what the effect would have been had the T210 owner cut holes in his baffles, which is why I strongly discouraged the idea.)

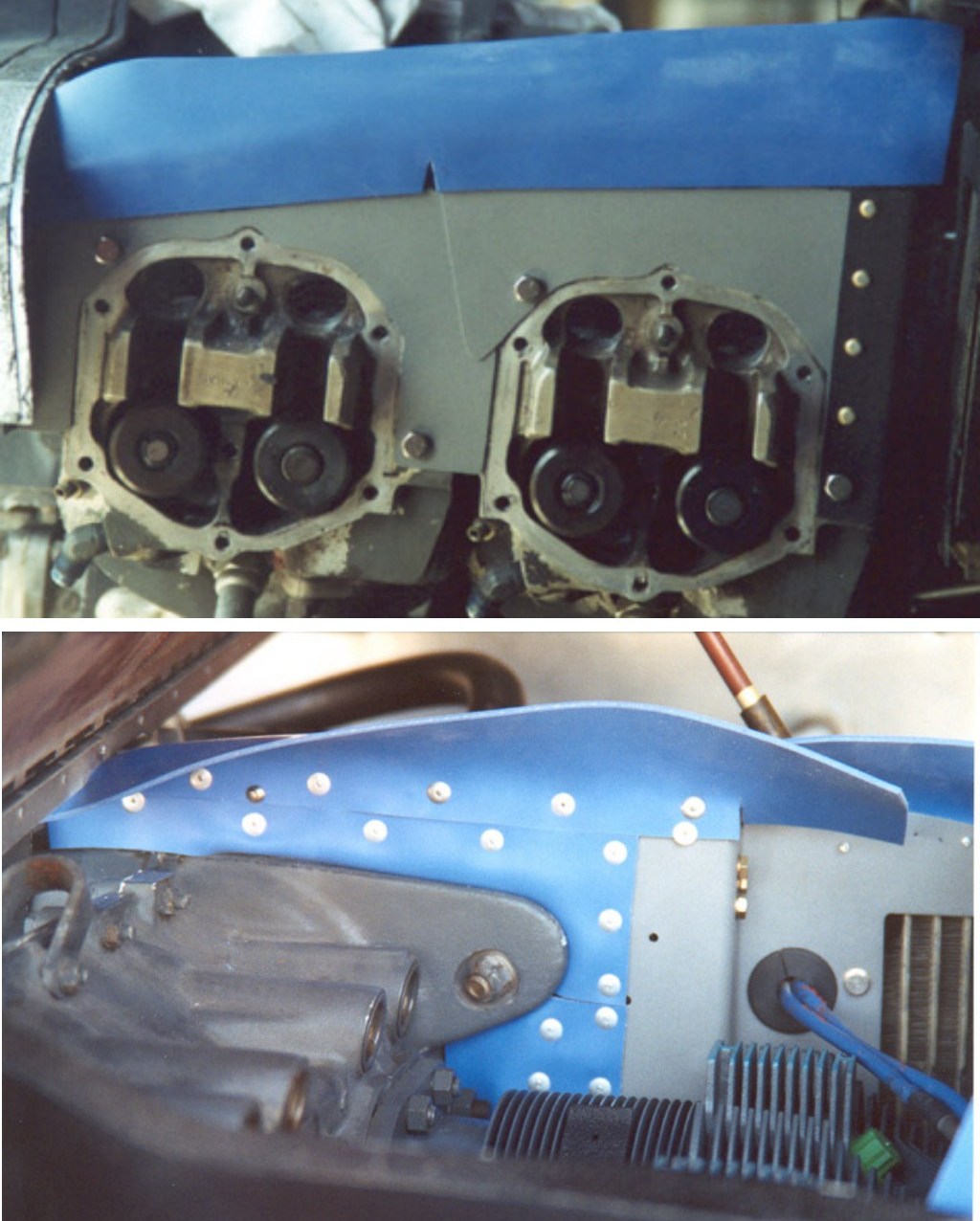

Probably the most trouble-prone part of the cooling system is the system of flexible baffle seals. These flexible strips (usually high-temp silicone rubber) are used to seal up the gaps between the sheet metal baffles and the cowling. These gaps are necessary because the baffles move around inside the cowling as the engine rocks on its shock mounts.

To do their job, the seals must curve up and forward into the high-pressure chamber, so that the air pressure differential (delta-P) presses the seals tightly against the cowling. If the seals are permitted to curve away from the high-pressure area—not hard to do when closing up the cowling if you’re not paying close attention—they can blow away from the cowling in-flight and permit large amounts of air to escape without doing any cooling.

I recall some years ago inspecting a Cessna TR182 whose pilots had complained of high CHTs. Upon removing the top engine cowling, I immediately spotted the problem: One of the ignition leads was misrouted and became trapped between the baffle seal and the cowling, preventing the baffle seal from sealing against the cowling. The ignition lead had become severely chafed where it rubbed against the cowling, and an A&P had wrapped the chafed area with electrical tape, but failed to reroute the tape-wrapped lead to keep it away from the baffle seal. Clearly that A&P didn’t understand the importance of an air-tight seal between the baffle seals and the cowling. Repositioning the ignition lead solved both the cooling problem and the chafing problem.

Another common problem is that seals may develop wrinkles or creases when the cowling is installed, preventing them from sealing airtight against the cowling and allowing air to escape. It’s important to look carefully for such problems each time the cowling is removed and replaced, and especially important when new seals have been installed (as was the case with the T210).

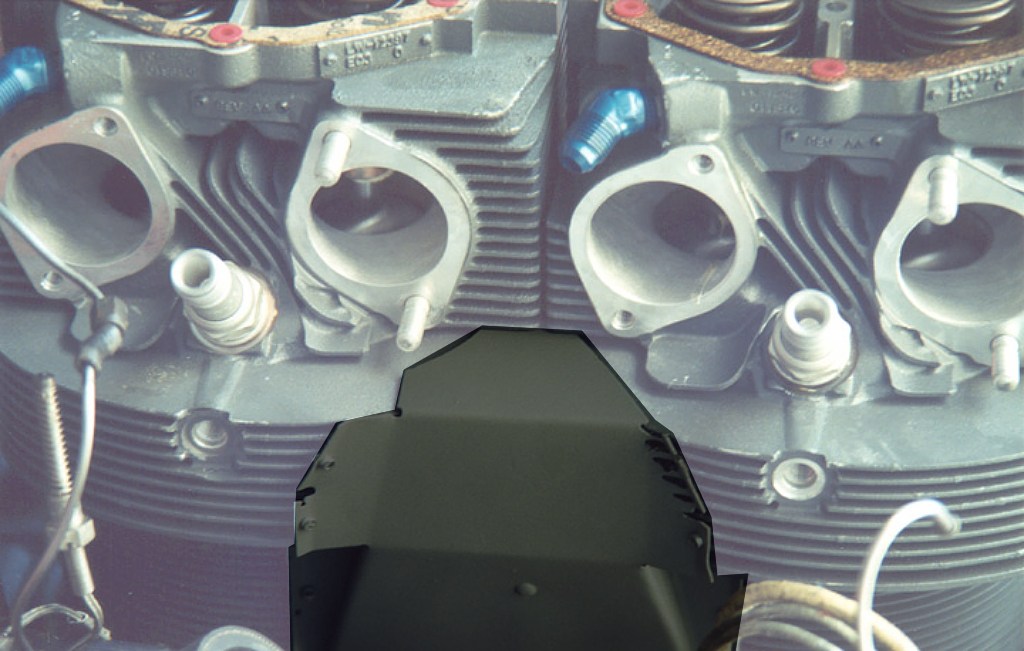

Yet another trouble-prone part of the cooling system is the inter-cylinder baffles. These are small, oddly-shaped pieces of sheet metal mounted below and between the cylinders. Their purpose is to force the down-flowing cooling air to wrap around and cool the bottom of the cylinders, rather than just cooling the top and sides. These baffles are difficult to see unless you know exactly where to look for them, but they are absolutely critical for proper cooling. It’s not at all uncommon for them either to be left out during engine installation or to fall out during engine operation. Either way, the result is major cooling problems.

Awhile back, I noticed that the #3 cylinder of the right engine on my Cessna 310 was running noticeably hotter than its neighbors. I removed the top cowling from the right engine nacelle and carefully inspected all the aluminum baffles and rubber baffle seals, but couldn’t find anything awry. Frustrated, I removed the lower cowlings so that I could inspect the underside of the engine. Sure enough, I discovered that the intercylinder baffle between cylinders #1 and #3 had vibrated loose and shifted about 1/4 inch out of position, creating a significant air leak near the #3 cylinder. Repositioning the baffle properly and tightening its attach bolt to hold it securely in place against the cylinders and crankcase solved the problem.

Why the T210 engine ran hot

With this as background, I emailed the T210 owner to discourage him from cutting holes in his baffles, and suggested instead that he examine his baffles and seals for existing holes and gaps that could be plugged up to improve cooling. A couple of days later, the owner emailed me back a series of digital photos showing a half-dozen air leaks that he found in his newly installed baffles.

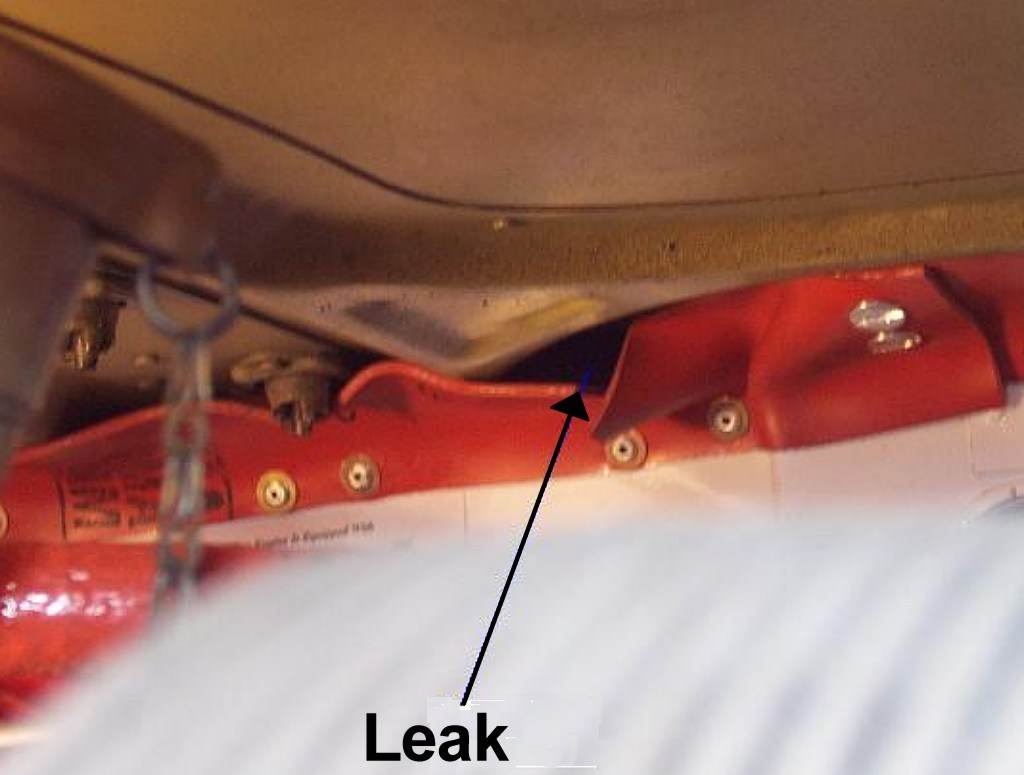

One of those photos revealed a fairly significant cooling air leak due to a wrinkle in a flexible baffle seal. This problem was apparent only with the top cowl installed, and could be seen by inspecting through the front intake openings using a flashlight. Savvy pilots who understand the importance of baffles and seals look for this sort of thing during pre-flight inspection. (Since mechanics do most of their inspecting with the cowlings removed, problems like this sometimes escape their detection.)

I studied the photos and continued my email dialog with the Cessna owner. Between the two of us, we managed to identify a dozen leaks in the T210’s new baffle system. Some were small, others more serious. Combined, they accounted for a significant loss of cooling efficiency. With a few well-placed dabs of high-temp RTV sealant and a little trimming of the flexible seal strips, the owner plugged the leaks in short order, and his engine began running noticeably cooler.
