Data-driven diagnosis

When he looked at the engine page on his Garmin G1000, the exhaust gas temperature and cylinder head temperature on the number 3 cylinder seemed unusually low. After a few minutes, the EGT and CHT normalized, and the roughness cleared up. He taxied out, did a thorough preflight runup, and took off. The flight was uneventful.

The next morning as the owner and his family were about to depart Key West for home, the roughness reappeared but this time didn’t go away as the engine warmed up. Leaning seemed to help some but did not resolve the problem completely. Once again, cylinder number 3 appeared to be cold on the G1000.

Why cold?

After unloading his family, the Skylane owner took the aircraft to a mechanic on the field who ran the engine and confirmed that the engine was running rough. The mechanic told the owner he thought that the RSA fuel servo was at fault. The A&P discussed the problem with another technician who agreed with his diagnosis.

The mechanic proposed to remove the RSA fuel servo and overnight it out to Precision Airmotive for bench testing and repair. This would leave the aircraft grounded and the owner stranded in Key West for a week. The estimated cost for an overhauled fuel servo was about $2,600.

Before authorizing this work, the Skylane owner wisely decided to seek a third opinion. His request was fielded by my colleague, A&P/IA Paul New, who owns Tennessee Aircraft Services and is a world-class Cessna expert and superb diagnostician. New had the owner describe the symptoms in detail and quickly concluded that it sounded like a classic case of Lycoming “morning sickness” caused by a sticky exhaust valve. He explained to the owner that the reported symptoms could not possibly be caused by a faulty RSA fuel servo, since there is no way a fuel servo problem could affect just one cylinder. However, a clogged number 3 fuel nozzle could also cause the cylinder to be cold and the engine to run rough.

Just to be sure, New asked to see the engine monitor data from the Skylane’s G1000. The owner sheepishly admitted that he’d neglected to install an SD card in the bottom slot of the G1000, so no data had been logged. New convinced the owner to obtain an SD card, insert it into the bottom slot, and do another ground run so that the data could be captured and uploaded to the Savvy platform.

New reviewed the engine data and found it was not consistent with a clogged injector or any other fuel system problem. Cylinder number 3 was producing meaningful EGT (so it was getting fuel and spark) but was not producing meaningful CHT (so it wasn’t producing power). Those findings were consistent with an exhaust valve that was not fully closing.

At New’s suggestion, the local mechanic removed the spark plugs from cylinder number 3 and predictably found them to be oil fouled. After cleaning the plugs, the engine ran a bit better and smoothed out after several more ground runs. This reinforced New’s diagnosis of a sticky number 3 exhaust valve, since the effects of a sticky valve are invariably worse when the cylinder head is cold and typically frees up as it heats up—hence the colloquial term “morning sickness.”

After digesting all this information, the Skylane owner decided to fly his family home—which he did without incident—and have his regular mechanic ream the number 3 exhaust valve guide. New referred the owner to Lycoming Service Bulletin 388C, which describes the procedure for doing this without cylinder removal. The owner subsequently reported that reaming the guide appeared to have resolved the issue completely.

Why hot?

Half a world away, another owner in Tzfat, Israel, was in a panic. He and his partner had just spent nearly $50,000 to replace the IO-550-N engine in their 2003 Cirrus SR22 with a Continental factory rebuilt engine.

On the first few flights after the engine change, the CHTs were predictably higher than what the owners were accustomed to seeing—especially cylinders number 2 and 6—but they understood that higher-than-normal CHTs are normal during the initial break-in period. Continental recommends that CHTs be kept at or below 420 degrees Fahrenheit during break-in, although we seldom see them exceed 400 degrees in an aircraft like the Cirrus SR22 with its exceptionally efficient cooling system.

By the time the new engine had four hours in service, most of the CHTs (including number 2) seemed to be coming down nicely, but number 6 seemed to be getting worse. Then on a takeoff from a small airport 100 miles away from home base, CHT number 6 rose smoothly to 470 degrees, while the other five CHTs stabilized in the 360- to 380-degree range. The pilot immediately reduced power and returned to the airport. When the airplane touched down, CHT number 6 had come back down to about the same as the other cylinders.

The pilot attempted another takeoff, but CHT number 6 started to run away again, so he aborted the takeoff roll and stopped on the remaining runway. According to the pilot, the number 6 EGT remained normal throughout, about in line with the EGTs for the other five cylinders. Only the number 6 CHT went crazy.

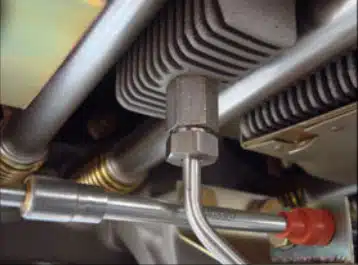

Based on the pilot’s verbal report, we suspected the high CHT for number 6 was some sort of indication problem, because a “real” combustion anomaly would have been confirmed by an anomalous EGT. But experience has made us skeptical of eyewitness accounts, so I told the owner I’d feel a lot more comfortable giving him advice if I could see the actual engine data. The owner arranged to dump the data from his Avidyne Entegra multifunction display and upload it to the Savvy platform, where two of my colleagues and I reviewed it.

Our review of the data immediately confirmed our suspicions that the number 6 CHT indication was bogus. At one point, its value changed more than 40 degrees between two adjacent data samples taken six seconds apart. A 40-degree change in CHT in six seconds is simply not possible—it defies the laws of physics. I’ve studied data from literally thousands of flights—we now have roughly 9 million GA flights in our database—and the most rapid CHT rise I’ve ever seen, during a destructive preignition event that melted the piston, was about 1.5 degrees per second. This one changed 7 degrees per second, and that’s simply not plausible. The CHT number 6 indication was lying, because of either a faulty probe or a bad connection.

We asked whether it was possible to have the number 6 and number 4 CHT probes swapped to verify our diagnosis. Unfortunately, there were no services at this airport, and no mechanic available to swap the probes. Based on our review of the data, we were sufficiently confident in our diagnosis that we recommended the owner fly the airplane home and have the CHT indication problem debugged there. The flight was uneventful, the CHT probe was replaced, and the new engine was doing just fine.

Hot hot hot

Another client flew his Cessna T210 to a top-notch California shop for its annual inspection. The shop repaired several discrepancies and sent out both magnetos for their 500-hour IRAN (inspect, repair as necessary). Two weeks later, the owner came to pick up his aircraft. He paid the shop’s invoice, fired up, taxied out, performed a normal engine runup, and took off.

About 90 seconds after takeoff, the airplane’s JPI EDM-700 engine monitor alarmed, and the pilot saw that CHT number 2 had passed 395 degrees and was still rising. He immediately reduced power and told the tower that he was returning to land. He taxied back to the shop and described the problem to the director of maintenance.

Because both magnetos had been removed and reinstalled, the DOM’s first thought was that the magneto timing was adjusted too far advanced. He had his lead IA re-check the mag timing (while he watched) using the shop’s fancy Pro-3600 digital inclinometer, and it was spot-on within 0.2 degrees of spec. The IA checked the number 2 fuel nozzle and found it clean and unobstructed. He also checked the number 2 cylinder’s spark plugs and they looked fine.

More than an hour later, the owner attempted a second takeoff and this time the CHTs were even worse. CHT for cylinders number 1, 2, and 3 reached 400 degrees, 408 degrees, and 411 degrees, respectively, before the pilot reduced power and came back to land. He dumped his JPI data on a USB thumb drive, uploaded it to the Savvy platform, and phoned me. I pulled up the data on my computer while he was still on the phone.

I compared the engine data for the last pre-annual flight to the data for the two aborted post-annual flights. During takeoff and initial climb, both post-annual flights had CHTs about 50 degrees higher and EGTs about 50 degrees lower than the pre-annual benchmark flight. This could mean only one thing: advanced magneto timing. I told the owner that I understood the shop had just checked the mag timing and found it spot-on, but I also knew that the engine data wasn’t lying, so I urged the owner to have the shop check the mag timing yet again. The high-CHT/low-EGT condition I was seeing in the data would require that at least one magneto had timing advanced by 3 to 5 degrees from what it should be.

Two hours later, I spoke with the DOM, who was a good friend. He told me that after the owner informed him of my diagnosis, he personally rechecked the mag timing, but this time instead of using the shop’s fancy $360 digital inclinometer, he used his old-fashioned E-25 mechanical “flower pot” timing protractor that he’d used for more than 30 years before buying the digital unit. Lo and behold, the flower pot revealed that the timing of both mags was advanced 3 degrees beyond the proper timing specification. The shop’s digital inclinometer was off by 3 degrees. It turned out that one of the technicians had accidentally dropped it on the concrete hangar floor, and it was never quite the same after that.

The shop readjusted the mag timing using the old flower-pot method, and the owner flew home with his EGTs and CHTs right where they were supposed to be.

They keep coming

Then there was the Beech F33A whose owner reported the engine ran rough at high power, and the engine monitor “flashed on number 6.” He took it to his shop, which changed the spark plugs, cleaned the fuel screen and nozzles, and did a compression check. A high-power ground run revealed the problem was unchanged. The shop then pulled the number 6 valve springs and determined that the valve guides were not excessively worn, the valves were not sticking, and the lifters were not collapsed.

Out of ideas, the A&P emailed me to see if I had any ideas. “I would hate to pull the cylinder for nothing and find I still have the problem,” he said. “Any help would be greatly appreciated.” Three guesses what I suggested to the A&P.

When a pilot reports engine issues, the first thing the A&P should do is review the engine monitor data, but very few do. Diagnosis shouldn’t be done by attacking the airplane with tools, it should be done by gathering data.
