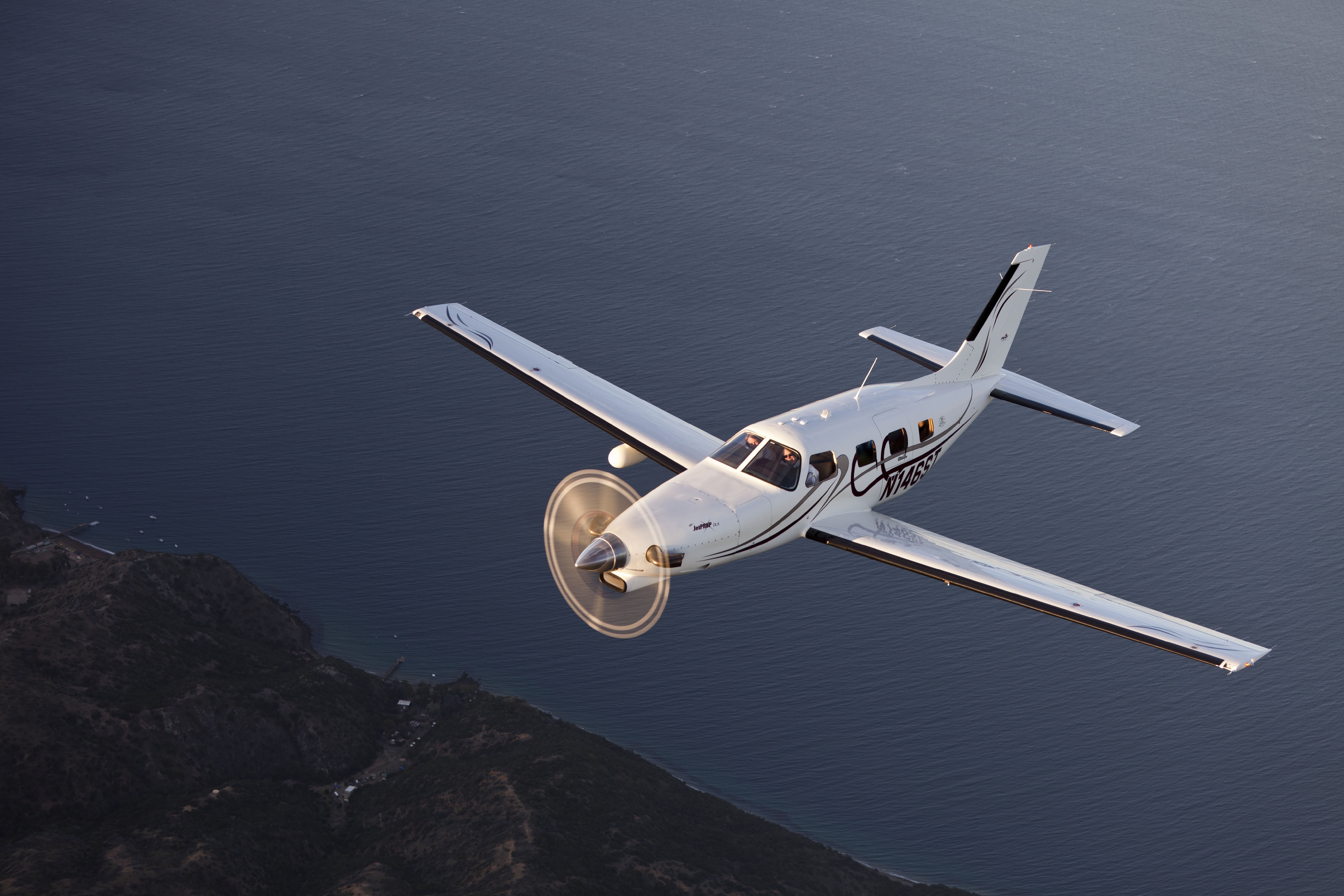

Piper M350

Overview

• The Piper M350 is as close as you can come to a "no excuses" piston single. Its 350-horsepower Lycoming TIO-540 engine lets you cruise at altitudes up to 25,000 feet and true airspeeds as fast as 225 knots. With a full load of fuel and a long-range cruise power setting, Piper claims the Mirage can fly three people about 1,450 nautical miles and land with IFR fuel reserves. At high-speed cruise, maximum range is a respectable 980 nm.

  Piper Malibu Mirage Fact Sheet

  Piper Malibu Mirage

Specifications

• Powerplant

  Lycoming TIO-540-AE2A, 350 hp

• Propellers

  Hartzell 3 blade Constant Speed

• Length

  28 ft 9 in

• Height

  11 ft 3 in

• Wingspan

  43 ft

• Wing Area

  175 sq ft

• Wing loading

  24.6 lb/sq ft

• Power loading

  12.3 lb/hp

• Cabin Width

  4 ft 2 in

• Empty Weight

  2,790 lb

• Maximum gross weight

  4,340 lb

• Useful load

  1,308 lb

• Payload with full fuel

  588 lb

• Fuel capacity

  122 gal/120 gal usable

• Baggage capacity

  200 lb

Performance

• Takeoff distance ground roll

  1,087 ft

• Takeoff distance over 50-ft obstacle

  2,090 ft

• Rate of climb sea level

  1,275 fpm

• Service ceiling

  25,000 ft

• Landing distance over 50-ft obstacle

  1,968 ft

• Landing distance ground roll

  1,020 ft

• Cruise speed/endurance w/45-min rsv, std fuel (fuel consumption, ea engine) @ 75% power, best economy

  213 kt/ (20 gph)

• Range

Limiting and Recommended Airspeeds

• V_X

  81 KIAS

• V_Y

  110 KIAS

• V_NE

  198 KIAS

• V_S1

  69 kt

• V_SO

  58 kt

For more information, contact Piper Aircraft Inc at or via https://www.piper.com/model/m350/

All specifications are based on manufacturer's calculations. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
