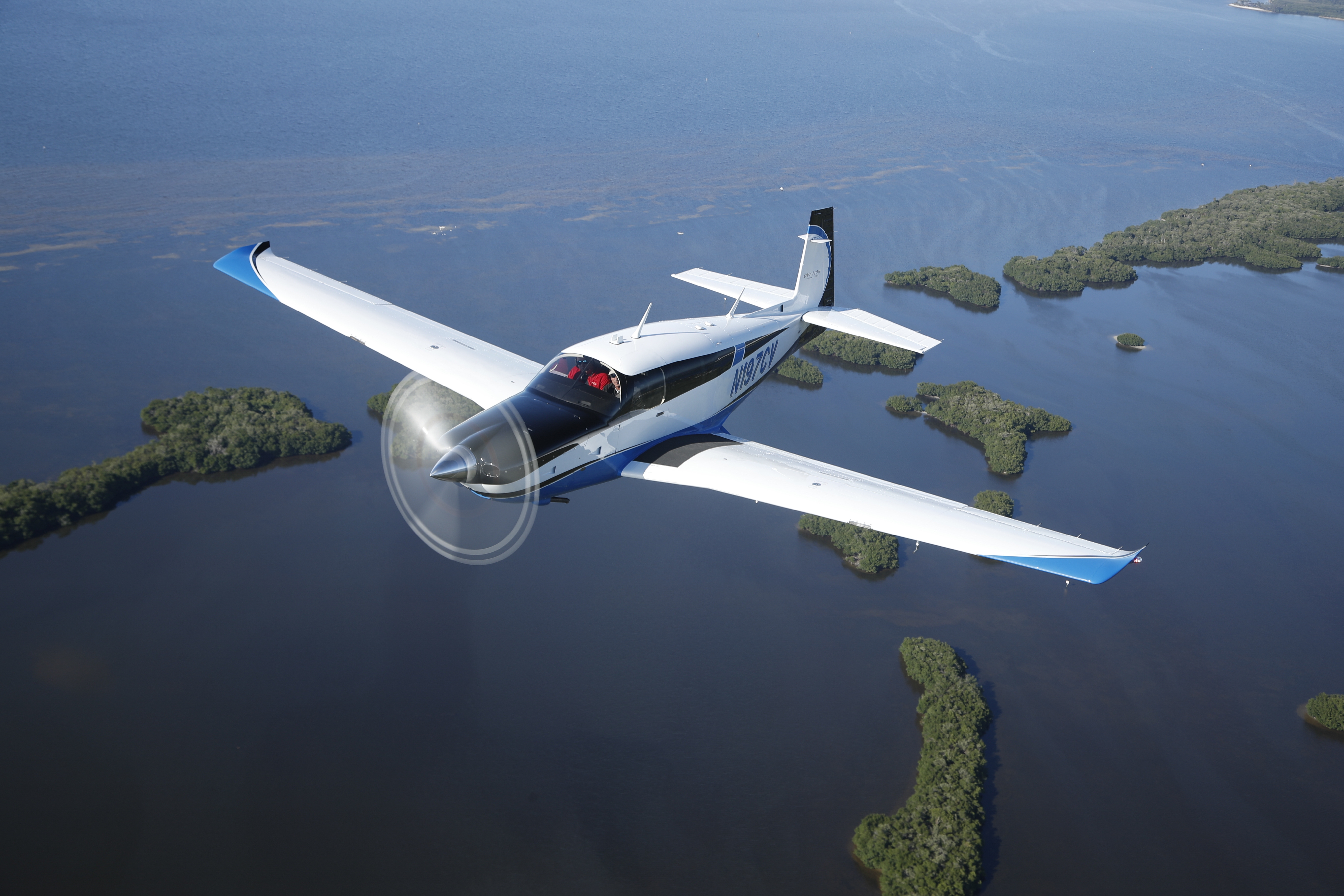

Mooney Ovation

Overview

• To many in the general aviation community, the words Mooney and efficiency are synonymous. With a sleek fuselage and flush-riveted surfaces on much of the wing, Mooneys have always been top competitors in their class. Therefore, it was not surprising that some Mooney aficionados gasped when the company introduced the Ovation with its big-bore Continental engine. The Ovation is a commonsense kind of airplane. It extracts sizzling performance from a tried-and-true engine and airframe, yet makes life easy for the pilot by embracing sophisticated and modern systems. The Ovation, then, filled a gap in Mooney's lineup. Its normally aspirated 280-hp Continental IO-550-G allows a max cruise speed of 190 knots.

  Mooney Ovation Fact Sheet

  Mooney Ovation Ultra

Specifications

• Powerplant

  Continental IO-550-G, 310 hp

• Propellers

  Hartzell Scimitar 3 blade, constant speed

• Length

  26 ft 8 in

• Height

  8 ft 4 in

• Wingspan

  36 ft 6 in

• Wing Area

  175 sq ft

• Wing loading

  19.3 lb/sq ft

• Power loading

  11.2 lb/hp

• Cabin Width

  43.5 in

• Empty Weight

  2,250 lb

• Maximum gross weight

  3,380 lb

• Useful load

  1,130 lb

• Payload with full fuel

  530 lb

• Fuel capacity

  100 gal

• Baggage capacity

  120 lb

Performance

• Takeoff distance ground roll

  1,600 ft

• Takeoff distance over 50-ft obstacle

  2,600 ft

• Rate of climb sea level

  1,300 fpm

• Service ceiling

  20,000 ft

• Landing distance over 50-ft obstacle

  2,500 ft

• Landing distance ground roll

  1,100 ft

• Cruise speed/endurance w/45-min rsv, std fuel (fuel consumption, ea engine) @ 75% power, best economy

  197 KTAS

• Range

Limiting and Recommended Airspeeds

• V_X

  85 KIAS

• V_Y

  105 KIAS

• V_NE

  195 KIAS

• V_S1

  66 KIAS

• V_SO

  59 KIAS

For more information, contact Mooney International Corp at or via mooney.com

All specifications are based on manufacturer's calculations. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
