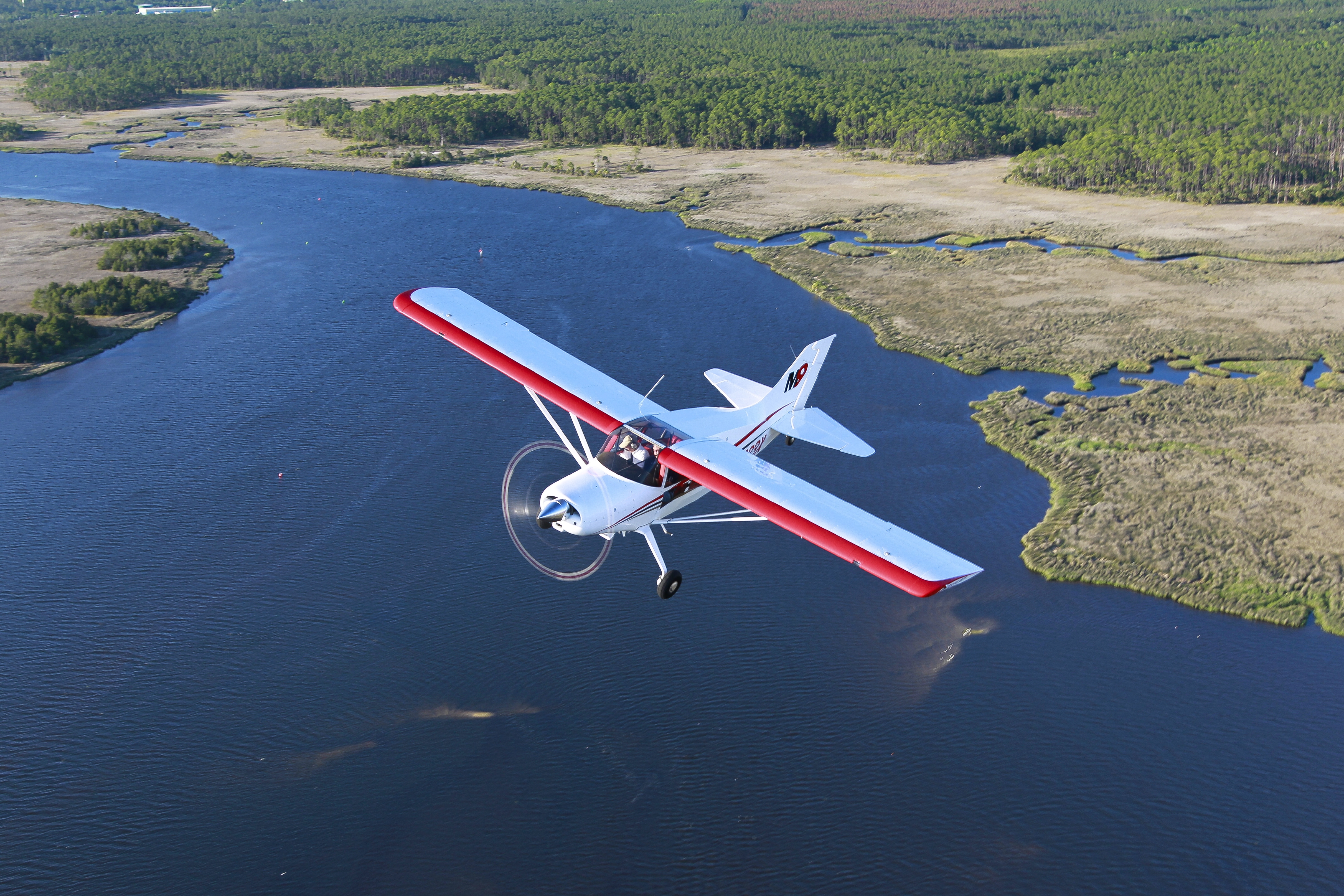

Maule M-9

Overview

• The M–9 comes closest of any Maule of being a clean sheet design. It has a long-sought 300-pound increase in gross weight—actually a 280-pound increase if you subtract the wing stiffeners, thicker wing ribs, and thicker landing gear that were required for the new weight. It also carries 85 gallons of usable fuel. This five-seat tailwheel aircraft with side-by-side seating has a maximum gross weight of 2,800 pounds, the heaviest Maule ever certified on wheels.

  Maule M-9-235

  Ramp Appeal: Maule M-9

Specifications

• Powerplant

  Lycoming I0-540-W1A5, 235 hp

• Propellers

• Length

  23 ft 8 in

• Height

  6 ft 3 in

• Wingspan

  32 ft 11 in

• Wing Area

  165.6 sq ft

• Wing loading

  16.9 lb/sq ft

• Power loading

  11.9 lb/hp

• Cabin Width

  3 ft 6 in

• Empty Weight

  1,700 lb

• Maximum gross weight

  2,800 lb

• Useful load

  1,100 lb

• Payload with full fuel

  590 lb

• Fuel capacity

  85 gal

• Baggage capacity

  170 lb, 42 cu ft

Performance

• Takeoff distance ground roll

  406 ft

• Takeoff distance over 50-ft obstacle

  791 ft

• Rate of climb sea level

  800 fpm

• Service ceiling

  20,000 ft

• Landing distance over 50-ft obstacle

  900 ft

• Landing distance ground roll

  250 ft

• Cruise speed/endurance w/45-min rsv, std fuel (fuel consumption, ea engine) @ 75% power, best economy

  137 kt/5.7 hr (13 gph)

• Range

Limiting and Recommended Airspeeds

• V_X

  65 KIAS

• V_Y

  78 KIAS

• V_NE

  156 KIAS

• V_S1

  53 KIAS

• V_SO

  43 KIAS

For more information, contact Maule Aircraft Inc at or via https://www.mauleairinc.com/copy-of-m-7-series

All specifications are based on manufacturer's calculations. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
