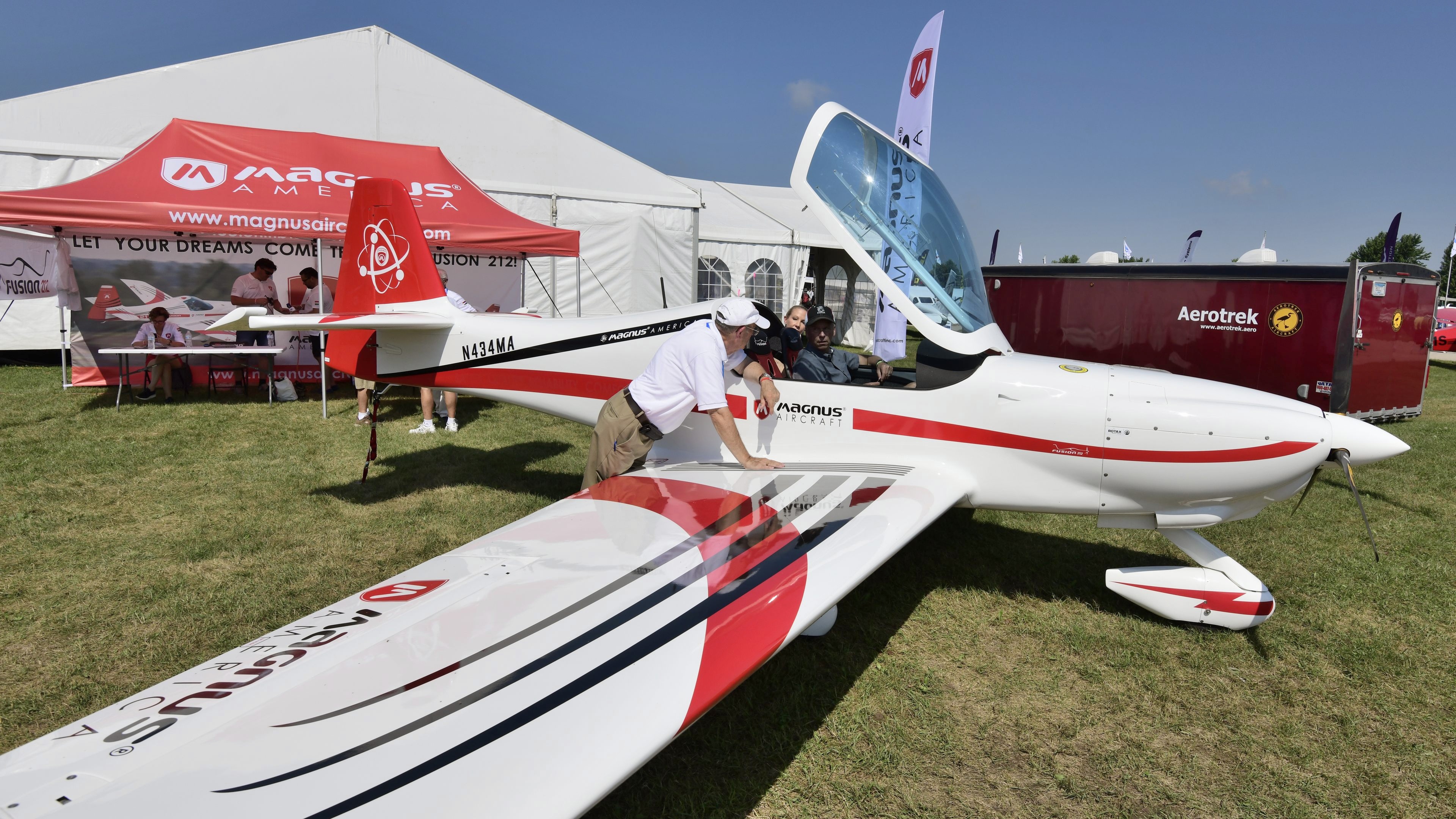

Magnus Fusion

Overview

• The Fusion offers side-by-side seating and dual controls. The company said its exceptionally responsive flight controls make this an ideal aircraft for flight training and for recreational pilots. It is powered by a 100-horsepower Rotax 912 ULS or iS Sport engine, and a Rotax UL Power 260iSA can be ordered. It is available with DUC or MT three-blade fixed-pitch, ground-adjustable propellers that conform to SLSA requirements.

  Magnus Fusion

Specifications

• Powerplant

  Rotax 912 ULS, 100 hp

• Propellers

• Length

  21 ft 8 in

• Height

  6 ft 11 in

• Wingspan

  27 ft 4 in

• Wing Area

• Wing loading

• Power loading

• Cabin Width

  3 ft 10 in

• Empty Weight

• Maximum gross weight

  1,323 lb

• Useful load

• Payload with full fuel

• Fuel capacity

• Baggage capacity

  45 lb

Performance

• Takeoff distance ground roll

  490 ft

• Takeoff distance over 50-ft obstacle

• Rate of climb sea level

  1,200 fpm

• Service ceiling

  12,000 ft

• Landing distance over 50-ft obstacle

• Landing distance ground roll

• Cruise speed/endurance w/45-min rsv, std fuel (fuel consumption, ea engine) @ 75% power, best economy

  116 kt/4.2 gph

• Range

Limiting and Recommended Airspeeds

• V_X

• V_Y

• V_NE

• V_S1

• V_SO

  45 kt

For more information, contact Magnus Aircraft at or via https://www.magnusaircraft.com/fusion_premium/index.php

All specifications are based on manufacturer's calculations. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
