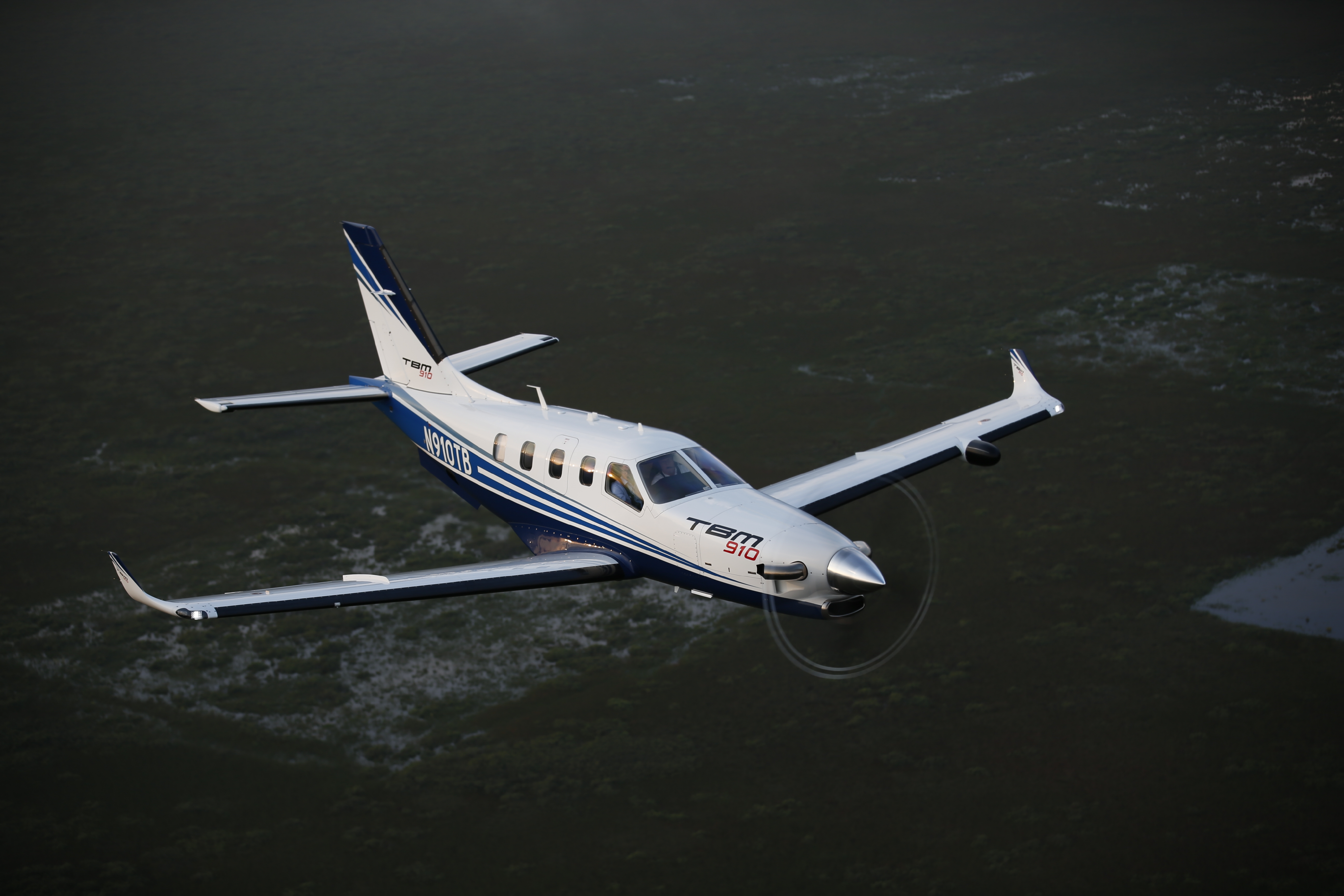

Daher TBM 910

Overview

• The 910 includes a number of interior improvements, as well as Garmin’s new G1000 NXi panel. The G1000 NXi is Garmin’s next-generation G1000, and includes many feature enhancements, including moving map in the HSI window, graphic frequency confirmation, improved font readability, VFR sectional and IFR chart support, and better touch feel on buttons. The system is also significantly faster. The TBM 910 also includes some interior refinements: The seats are redesigned and there are more USB ports, for example.  An innovative “elite privacy compartment” also is available now as an option. The side-facing potty seat becomes completely blocked off from the rest of the cabin through a creative electrically folding wall housed in an armrest.

  Daher TBM 910

  Daher TBM 910: Panel Power

  Turbine Single-Pilot Directory

Specifications

• Powerplant

  Pratt & Whitney Canada PT6A-66D, 850 shp

• Propellers

• Length

  35 ft 4 in

• Height

  14 ft 5 in

• Wingspan

  42 ft 1 in

• Wing Area

• Wing loading

• Power loading

• Cabin Width

  4 ft

• Empty Weight

  4,629 lb

• Maximum gross weight

  7,430 lb

• Useful load

• Payload with full fuel

  891 lb

• Fuel capacity

  291 gal

• Baggage capacity

  507 lb, 30 cu ft

Performance

• Takeoff distance ground roll

• Takeoff distance over 50-ft obstacle

  2,380 ft

• Rate of climb sea level

• Service ceiling

  31,000 ft

• Landing distance over 50-ft obstacle

  2,430 ft

• Landing distance ground roll

• Cruise speed/endurance w/45-min rsv, std fuel (fuel consumption, ea engine) @ 75% power, best economy

  330 kt

• Range

Limiting and Recommended Airspeeds

• V_X

• V_Y

• V_NE

• V_S1

• V_SO

For more information, contact Daher at or via https://www.tbm.aero/products/tbm-910/

All specifications are based on manufacturer's calculations. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
