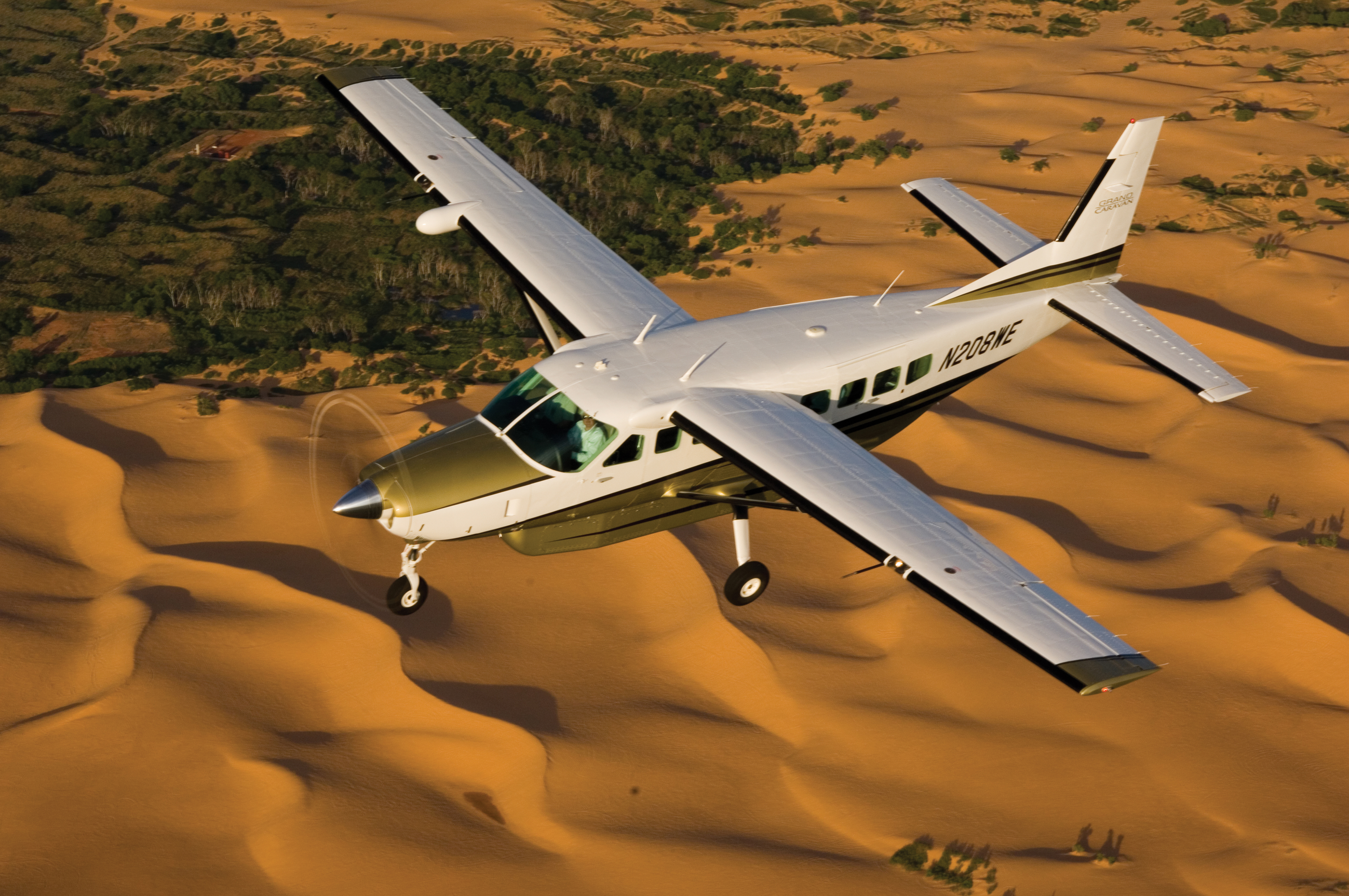

Cessna Caravan

Overview

• The Caravan has been popular from its start in 1984, when it became the first certified single-engine turboprop. It’s a sturdy, multipurpose, go-anywhere heavy hauler with a strong following among operators in remote areas where runways are unimproved and missions varied. Want to sit tall on the ramp and fly as a seaplane? Then Caravans can be fitted with straight or amphibious floats. A high-density seating option provides seats for up to 14 passengers. The Oasis option, on the other hand, gives customers an executive interior with an eight-seat, surprisingly luxurious cabin.

  Cessna Caravan

  Cessna Caravan Fact Sheet

Specifications

• Powerplant

  Pratt & Whitney Canada PT6A-114A, 675 shp

• Propellers

  McCauley 3 blade metal, constant speed, full feathering

• Length

  37 ft 7 in

• Height

  14 ft 10 in

• Wingspan

  52 ft 1 in

• Wing Area

  279 sq ft

• Wing loading

  28.67 lb/sq ft

• Power loading

  11.85 lb/hp

• Cabin Width

  64 in

• Empty Weight

  4,730 lb

• Maximum gross weight

  8,035 lb

• Useful load

  3,305 lb

• Payload with full fuel

  1,081 lb

• Fuel capacity

  2,224 lb / 332 gal

• Baggage capacity

  31.5 cu ft, 325 lb

Performance

• Takeoff distance ground roll

  1,160 ft

• Takeoff distance over 50-ft obstacle

  2,055 ft

• Rate of climb sea level

  1,234 fpm

• Service ceiling

  25,000 ft

• Landing distance over 50-ft obstacle

  1,625 ft

• Landing distance ground roll

  715 ft

• Cruise speed/endurance w/45-min rsv, std fuel (fuel consumption, ea engine) @ 75% power, best economy

  186 KTAS

• Range

Limiting and Recommended Airspeeds

• V_X

• V_Y

• V_NE

• V_S1

• V_SO

For more information, contact Textron Aviation (Cessna) at or via https://cessna.txtav.com/en/turboprop/caravan

All specifications are based on manufacturer's calculations. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
