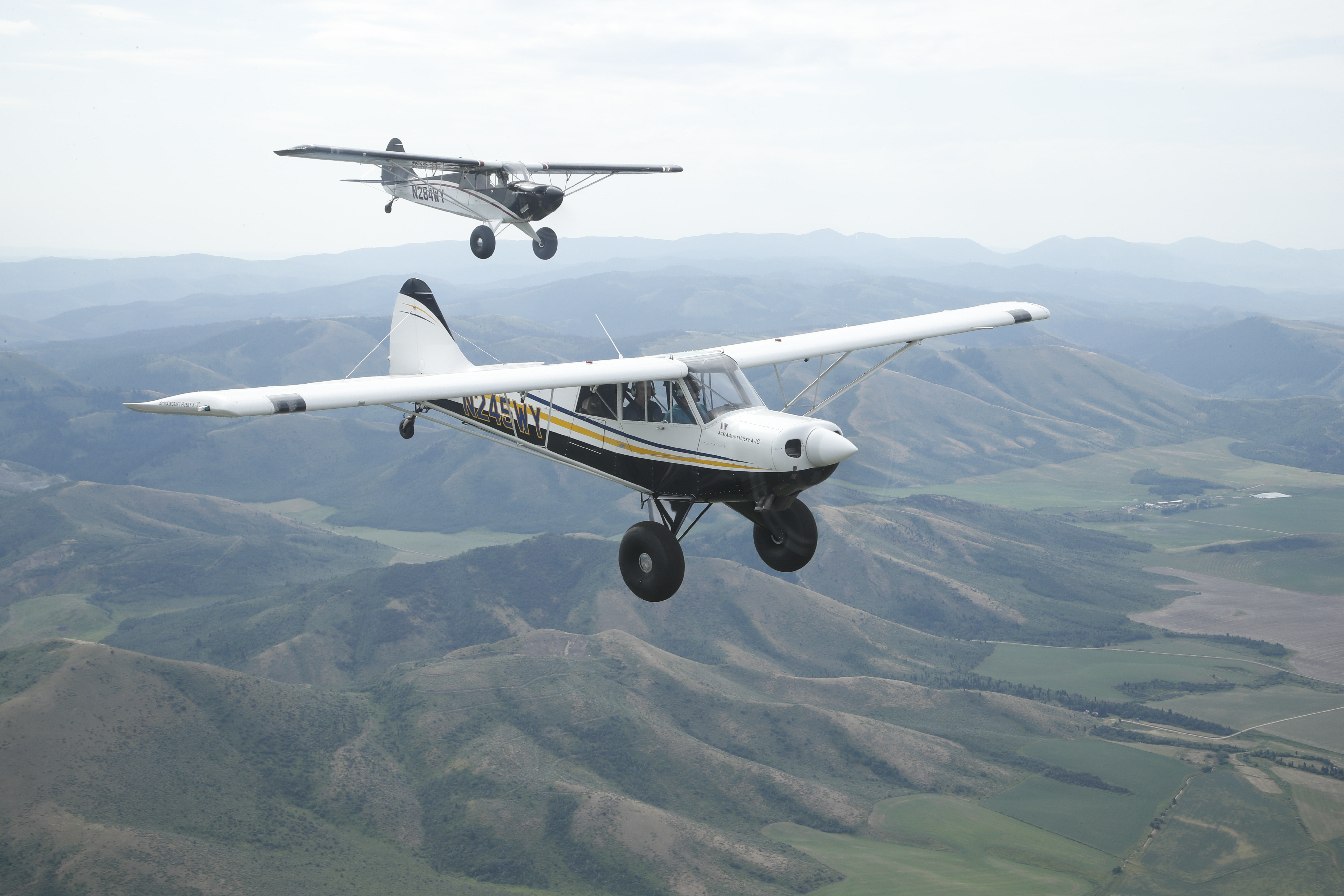

Aviat Husky A-1C-180

Overview

• The new Aviat Husky A–1C contains a laundry list of seemingly small changes that, when taken together, significantly improve the experience of flying the stalwart backcountry aircraft. The biggest alteration replaces the airplane’s bungee elevator trim system with a more traditional tab. The result is a lighter elevator touch that better matches the ailerons for a more harmonized control feel. Other welcome changes have to do with the front seat. It tilts forward, which makes climbing in and out of the back seat far simpler and less gymnastic. The seat also slides fore and aft, and it can tilt and move simultaneously. The improvements can accommodate much taller pilots. Husky seats used to be fixed in place; the only way to alter the seating position was to change to thinner or thicker cushions.

  Aviat Husky A-1C

  Aviat Husky A-1C-200 Trip of a Lifetime

Specifications

• Powerplant

  Lycoming 0-360-A1P, 180 hp

• Propellers

  Hartzell 76” Composite

• Length

  22 ft 7 in

• Height

  7 ft 5 in

• Wingspan

  35 ft 6 in

• Wing Area

  183 sq ft

• Wing loading

  12 lb/sq ft

• Power loading

  12.2 lb/hp

• Cabin Width

  27 in

• Empty Weight

  1,275 lb

• Maximum gross weight

  2,250 lb

• Useful load

  975 lb

• Payload with full fuel

  675 lb

• Fuel capacity

  50 gal

• Baggage capacity

Performance

• Takeoff distance ground roll

  289 ft

• Takeoff distance over 50-ft obstacle

  690 ft

• Rate of climb sea level

  1,500 fpm

• Service ceiling

  20,000 ft

• Landing distance over 50-ft obstacle

• Landing distance ground roll

  397 ft

• Cruise speed/endurance w/45-min rsv, std fuel (fuel consumption, ea engine) @ 75% power, best economy

  140 mph

• Range

Limiting and Recommended Airspeeds

• V_X

• V_Y

• V_NE

• V_S1

• V_SO

For more information, contact Aviat Aircraft at or via https://aviataircraft.com/husky-aircraft/

All specifications are based on manufacturer's calculations. All performance figures are based on standard day, standard atmosphere, sea level, gross weight conditions unless otherwise noted.
