Airspace for Commercial Space Launches

Aircraft Hazard Area and Transitional Hazard Area

The Issue

The number of commercial space launches increased 400% from 2015 to 2018. The number of companies involved and the number of approved spaceports continues to grow. Many of these commercial space activities occur on the coasts, but activity is increasing in the interior of the country and even near large cities. Similar to the integration efforts underway with drones and urban air mobility, the growing number of space launches need to be integrated into the National Airspace System (NAS) so as to mitigate the adverse impacts on general aviation.

To avoid large amounts of airspace being restricted during launch or reentry activity, the FAA has worked with industry to avoid activating large areas of charted Special Use Airspace (SUA), like Restricted Areas. Instead, in collaboration with users, the FAA has defined new hazard areas that will limit the boundaries of the area needing to be protected from nonparticipating aircraft. The two areas that impact pilots are the Aircraft Hazard Area (AHA) and the Transitional Hazard Area (THA). This fact sheet will define these areas, the impact each has on operations, and how pilots can fly safely and efficiently in the proximity of commercial space launches.

Space Launches Require Protected Airspace

This graphic depicts a TFR for a space shuttle launch from Cape Canaveral in 2006. It included a 30 NM and 40 NM ring that had varying levels of operating restrictions. In order to protect nonparticipating aircraft from the potential of a launch or reentry mishap and the resulting falling debris, the FAA has defined the airspace that must be protected. Most pilots are familiar with the Temporary Flight Restrictions (TFR) published for space activity that are issued under 14 CFR 91.143. These TFRs alert pilots of the times and area that must be restricted in the interest of safety.

The size of the TFR can vary depending on several factors that are unique to each launch or reentry, but the size is mathematically calculated based on the FAA’s target level of safety for that operation. Air Traffic Control (ATC) uses a different method for calculating the target level of safety than the Commercial Space Transportation Office. In order to keep the protected area manageable, ATC worked with the Commercial Space Transportation Office to determine an acceptable level of risk that would ensure nonparticipating aircraft were protected while also providing for efficient operations. The product of this effort was the Aircraft Hazard Area (AHA) and the Transitional Hazard Area (THA). The acceptable level of risk strategy was initially implemented in 2018 and continues to be refined.

Launches from Cape Canaveral are so common that the VFR Sectional Chart for that area includes a blue tinted area that aligns with the common lateral boundaries of the TFR. This charting symbology was added so that pilots would not need to plot the VOR/DME arc and latitude/longitude points that make up the TFR area defined in the NOTAM.

Aircraft Hazard Area (AHA)

The Aircraft Hazard Area (AHA) is the area that must be protected by a TFR, stationary Altitude Reservation (ALTRV), or Special Use Airspace (SUA). The AHA is where the risk is the highest, and operations of nonparticipating aircraft are prevented.

An ALTRV NOTAM can restrict IFR aircraft operations within the defined area; however, the information contained within that NOTAM is also useful for VFR pilots’ situational awareness as it advises of potential hazards. ALTRVs may be issued to protect the AHA airspace at any altitude but primarily are utilized for airspace above Flight Level 180 (i.e., Class A airspace) and airspace located outside U.S. domestic airspace (i.e., 12 NMs offshore). An ALTRV does not prevent VFR operations but pilots should be aware of the activity taking place within that area before transiting the airspace and should consider alternative routing.

The TFR NOTAM, which does apply to all aircraft, will provide the activation times and lateral boundaries of the airspace needing protection from VFR and IFR aircraft. Pilots may also see Restricted Areas, Warning Areas, and other SUA activated via NOTAM in support of commercial space launches.

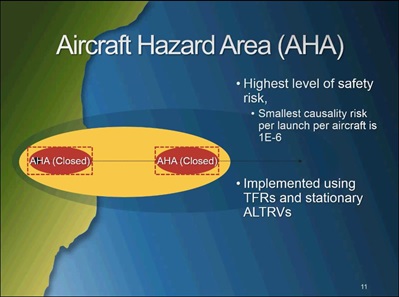

This FAA graphic shows the AHA in red, which will normally be an ALTRV or TFR, and that this area is closed to nonparticipating aircraft. The yellow area represents the THA. There are two AHAs in this graphic: one for the launch area and one for the rocket booster fly back landing area. FAA Pilot/Controller Glossary definition:

Aircraft Hazard Area (AHA) – Used by ATC to segregate air traffic from a launch vehicle, reentry vehicle, amateur rocket, jettisoned stages, hardware, or falling debris generated by failures associated with any of these activities. An AHA is designated via NOTAM as either a TFR or stationary ALTRV. Unless otherwise specified, the vertical limits of an AHA are from the surface to unlimited.

Pilots are reminded that TFRs that extend beyond 12 NMs, the U.S. coastal limit, still apply to FAA certificated pilots and U.S. registered aircraft so must be respected. 14 CFR 91.703 and Advisory Circular 91-63D explain this requirement. Additionally, the TFR NOTAM should include an explicit note of this applicability.

Transitional Hazard Area (THA)

The Transitional Hazard Area (THA) is a defined area where the risk is low enough that nonparticipating VFR aircraft can fly through unrestricted. However, IFR aircraft require ATC services so are subject to additional operational restrictions. The additional operational restrictions for IFR aircraft transiting a THA include the use of mandatory routes and limitations on deviations from that route. Basically, ATC needs IFR aircraft to cross a THA as expeditiously as possible. Pilots are alerted to these requirements by a NOTAM.

This FAA graphic shows the THA in yellow, which will normally be announced via a NOTAM, and that this area may have operational restrictions for IFR aircraft. FAA Pilot/Controller Glossary definition:

Transitional Hazard Area (THA) – Used by ATC. Airspace normally associated with an Aircraft Hazard Area within which the flight of aircraft is subject to restrictions.

VFR aircraft will not be denied entry into, out off, or through a THA; however, ATC services may not be fully available in this area. The FAA may not provide ATC services to aircraft at airports that lie within a THA. For example, a towered airport located in a THA may become nontowered during the commercial space launch, but VFR pilots will not be prevented from continuing to operate at the airport and should not be adversely affected. In fact, VFR flight following will be available in a THA. Another example would be an IFR aircraft inbound to an airport located within a THA may be given holding instructions and kept clear of the THA until the launch activity ends, or the pilots cancels their IFR clearance and proceeds VFR to the airport.

Each affected ATC facility will issue a NOTAM announcing what services may be suspended. Pilots will need to check NOTAMs to receive the most up to date information about what services may not be available.

Applicability of Temporary Flight Restrictions (TFR) Beyond the U.S. Coastal Limit

Temporary Flight Restrictions (TFR) are normally not issued for airspace beyond 12 NMs from the U.S. coastline; however, a person operating a civil aircraft of U.S. registry or who has an airman certificate issued by the FAA would have to comply with the provisions of a TFR beyond the 12 NM coastal limit due to 14 CFR 91.143 and 14 CFR 91.703. These types of TFRs that extend beyond the 12 NM U.S. coastal limit are issued regularly for Cape Canaveral and for commercial space launches. Per Advisory Circular 91-63D, TFR NOTAMs will note their applicability to U.S. aircraft and pilots if restrictions are located in an area that extends beyond the coastal limit or a U.S border. Pilots should respect any TFR even if it is located outside U.S. domestic airspace.

Best Practices for Flying in the Proximity of Commercial Space Activity

As the FAA works with AOPA and other industry groups to limit the impact of the increasing number of commercial space launches, pilots should be aware of the best practices to remain safe, avoid an airspace violation or being the cause of a scrubbed launch, and to fly efficiently:

Preflight

  • Pilots are encouraged to use online preflight resources, such as those provided by Flight Service, as they provide graphics for TFRs. The graphics can be used for operational purposes if there is no disclaimer stating otherwise.
  • Pilots should check NOTAMs, including ARTCC NOTAMs, before every flight, including short local flights.
  • The FAA’s online TFR graphical resource will provide a plain language explanation of a TFR NOTAM which can assist with understanding the area affected.
  • With the increasing number of NOTAMs being published, pilots should utilize the FAA’s NOTAM Search website as it allows filtering and sorting of NOTAMs.
  • Pilots are reminded to read NOTAMs in their entirety as some TFRs may allow pilots to fly through the flight restriction should they request permission to do so and subsequently receive it.
  • Pilots can reach Flight Service via telephone to be informed whether their route is clear of TFRs.
  • Manually plotting a TFR on a chart can result in error. Pilots should provide a buffer between the depicted TFR boundary and their flight path as FAA cartographers are allowed a certain amount of leeway (relative accuracy) when plotting significant points, including VORs.
  • Commercial space TFRs can change dynamically so pilots should remain attentive for NOTAMs and possible changing conditions of TFRs.
  • Participating in the FAA’s Safety Program Airmen Notification System (SPANS) is encouraged as it enables email notifications of TFRs in your area.
  • Many commercial space launches involve the activation of several Special Use Airspace (SUA) areas like Warning Areas and Restricted Areas. Pilots should check for SUA NOTAMs and the FAA’s SUA website while flight planning. ALTRV NOTAMs should also be reviewed for situational awareness.

Inflight

  • Pilots are encouraged to utilize VFR flight following as ATC will assist with TFR awareness and avoidance.
  • Calling Flight Service via radio for updated flight conditions enroute is advisable; however, receiving VFR flight following from ATC is the best method to avoid a TFR incursion.
  • It is best practice to monitor guard frequency (121.5 MHz) as ATC and government intercept aircraft will transmit on this frequency to pilots who may inadvertently enter a TFR.
  • Utilizing an onboard navigator with a moving map that displays own-ship position is an effective way of maintaining situational awareness, particularly with regard to TFR proximity.
  • It is important to understand how your Electronic Flight Bag or GPS moving map gets its TFR information and what its position accuracy is. Be aware of when your provider's TFR information is updated as some are not updated evenings or weekends. Be aware of FIS-B latency, processing time, and distance at which TFRs are uplinked. Understand your system’s settings as they relate to depiction of TFRs and other airspace (TFRs may have to be manually selected to be depicted).
  • Pilots are encouraged to use FIS-B but should understand the limitations of radio station coverage, uplink delays, and operational constraints of this system imposed by the FAA. Pilots should always back up FIS-B provided information with Flight Service or ATC.
  • Pilots should ensure they provide a buffer when avoiding a TFR to account for differences concerning variance of TFR plotting among aircraft displays. Current systems may not provide an assurance that the TFR boundary will be correctly depicted at all zoom levels. Display of aircraft own-ship position may provide misleading information.
A rocket ship symbol on a VFR Sectional Chart represents a space launch activity area, and it is normally located where the launch activity will be taking place. Only commercial space launch locations use this symbol.

If a pilot violates a TFR, they should file a NASA ASRS report within 10 days.

AOPA's Position

Commercial space launches are expected to increase in frequency and expand to more unique locations. It is important we find solutions that avoid sanitizing large swaths of airspace for hours at a time and that have an economic impact on other NAS users. It is important general aviation’s voice is at the table and that AOPA participates in finding the answers to these integration challenges.

AOPA has been actively involved in commercial space discussions, including participating in the Spaceport Categorization Aviation Rulemaking Committee (ARC), Airspace Access Priorities ARC, and providing comments to FAA rulemaking efforts. We have also been involved in the acceptable level of risk implementation discussions. We will continue to be involved particularly to ensure consistency of the implementation of these new airspace procedures and to advocate for improvements that will promote safer and more efficient operations for general aviation.
