ADS-B: FIS-B gets new featuresADS-B: FIS-B gets new features

You’ll need software updates first

Harris Corporation, which operates the FAA’s Automatic Dependent Surveillance-Broadcast (ADS-B) ground station network and uplinks Flight Information Services-Broadcast (FIS-B) weather and aeronautical information to pilots in the cockpit, is adding six new weather products that will be available to users later this year.
P&E August
Harris Corporation monitors its network of ADS-B ground stations from this network operations center in Herndon, Virginia, near Washington, D.C.
Images courtesy of Harris Corporation

ADS-B uses satellites instead of ground-based radar to determine aircraft location, and is a key technology behind the FAA’s Next Generation Air Transportation System. The FAA has mandated installation of ADS-B Out for flights after January 1, 2020, in airspace where a transponder is required today. ADS-B In services, such as FIS-B and traffic information, have become popular with pilots but are not required by the FAA.

Factory acceptance lab testing of the six new products was completed in mid-May, said Paul Freeman, Harris’s deputy program manager for ADS-B and surveillance broadcast systems (SBS). Then they moved into system acceptance testing. Pending FAA approval, they will begin to go live in late June and data should be available nationwide by October.

But that doesn’t mean you’ll be able to see them then—your avionics and tablet software will need to be updated first. “There aren’t any avionics out there that currently display these,” Freeman explained. “It is up to the avionics company to write the code to display [these products], and the aircraft owner to update software on the aircraft.” Some manufacturers typically push through software updates fairly quickly, while others may take longer.

The new FIS-B products are:

Center Weather Advisory. These unscheduled bulletins warn of conditions that meet or are approaching not previously forecast airmet, sigmet, or convective sigmet criteria, including moderate or greater icing; moderate or greater turbulence; heavy or freezing precipitation; conditions at or approaching low IFR; surface winds or gusts greater than 30 knots; low-level wind shear (2,000 feet agl and below); and volcanic ash, dust storms, or sandstorms. CWAs are valid for up to two hours and if a forecaster determines it’s warranted, they may be issued hourly for convective activity. Transmission interval: 10 minutes.

Cloud tops. The forecast altitude of cloud tops will be received from the National Weather Service’s High Resolution Rapid Refresh (HRRR) model. This information is available only for the continental United States, so cloud tops will not be provided in Alaska, Hawaii, Guam, or Puerto Rico. The HRRR is run every hour. Transmission interval: 15 minutes.

Graphical airmet. This graphical advisory of weather conditions that may be hazardous to aircraft, but are less severe than sigmets, is issued by the Aviation Weather Center at 0245, 0845, 1445, and 2045 UTC; they’re updated as necessary. Graphical airmets are available only for the lower 48 states and adjacent coastal waters. Transmission interval: five minutes.

Icing, forecast potential. The icing product provides forecast icing probability, icing severity, and anticipated presence of supercooled large droplets at 12 altitude levels—every 2,000 feet, from 2,000 feet msl to 24,000 feet msl. This information comes from the NWS Forecast Icing Potential model, which is available only in the continental United States, so forecast icing information will not be provided in Alaska, Hawaii, Guam, or Puerto Rico. This model is run on an hourly basis. Transmission interval: 15 minutes.

Lightning strikes. The lightning product shows recent cloud-to-ground lightning strikes, using lightning data provided by Vaisala. This information is available only for the continental United States, so lightning information will not be provided in Alaska, Hawaii, Guam, or Puerto Rico. Transmission interval: five minutes.

Like existing FIS-B products, all of the new products are considered by the FAA to be advisory only.Turbulence. The turbulence product provides the forecast maximum intensity of turbulence at 12 altitude levels—every 2,000 feet, from 2,000 feet msl to 24,000 feet msl (the same altitudes for which icing forecasts are provided). This information comes from the NWS Graphical Turbulence Guidance model, which is available only in the continental United States, so turbulence information will not be provided in Alaska, Hawaii, Guam, or Puerto Rico. This model is run on an hourly basis. Transmission interval: 15 minutes.

The graphical airmet or G-airmet is like several products rolled into one, Freeman said. “It is intended over the long term to be a replacement for what they consider the legacy airmet product, but there are no plans to sunset it in the near future.”

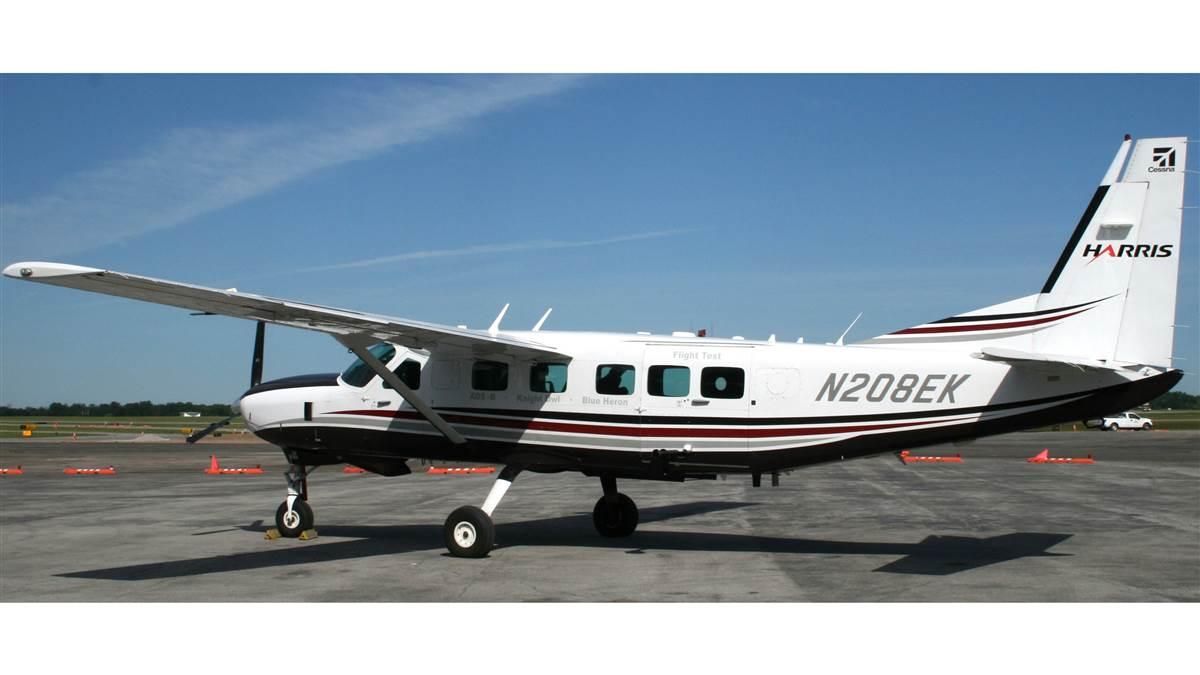

Harris uses this Cessna Caravan single-engine turboprop for flight testing of the ADS-B ground station network. It’s based in Rochester, New York.Like existing FIS-B products, all of the new products are considered by the FAA to be advisory only. That’s because it’s a passive, ground-to-air service that doesn’t electronically “handshake” to confirm that data has been received. “FIS-B was not architected that way. It’s just like your GPS receiver—the satellite doesn’t know you’re receiving it,” Freeman explained, although the ground stations do know an aircraft is receiving data.

Harris operates the ADS-B ground stations from its network operations center near Washington, D.C. “We actually own and operate the system. As I understand it, Congress didn’t want to front the cost of the system,” Freeman said. “We write the software here, we do the testing here, we run the system from here.” The system includes redundant data centers in Melbourne, Florida, and Atlanta.

The company has a performance-based contract with a target of 99.999 percent availability, he explained. “That actually determines our amount of revenue each month.” Each ground-station radio—there are 666 ground stations, with dual redundant radios—can be out of service for 24 minutes each year. However, the company receives an incentive if availability is higher. And there is almost always overlap between ground stations, so a pilot might not even notice a short-term interruption, he added.AOPA
