FAA Information Effective: Apr 17, 2025
All information is provided from the FAA unless otherwise noted.
Attended

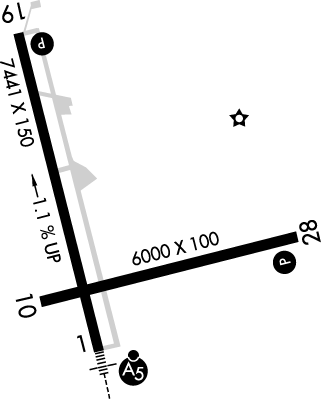

Designator: | 01 | 19 |
Elevation: | 455 ft | 534 ft |
Heading: | 363° magnetic 346° true | 183° magnetic 166° true |
Gradient: | 1.06% up | 1.06% down |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | precision, in Good condition | precision, in Good condition |
Approach Lighting: |
|
|
Displaced Threshold: | n/a | n/a |
ILS/LOC: | ILS | n/a |
Obstructions: | n/a | Trees, 425 ft Left ft of center, 115 ft high, 2,500 ft from end, 20:1 clearance slope |
Comments: | n/a | Papi Visual Ga Non-Std. FAA |
Designator: | 10 | 28 |
Elevation: | 473.2 ft | 473.2 ft |
Heading: | 093° magnetic 076° true | 273° magnetic 256° true |
Gradient: | n/a | n/a |
Traffic Pattern: | Left Pattern | Left Pattern |
Markings: | non-precision, in Good condition | non-precision, in Good condition |
Approach Lighting: | n/a |
|
Displaced Threshold: | n/a | n/a |
ILS/LOC: | n/a | n/a |
Obstructions: | Tree, Both-Sides, 44 ft high, 1,300 ft from end, 25:1 clearance slope | Railroad, Both-Sides, 31 ft high, 1,200 ft from end, 34:1 clearance slope |
Comments: | n/a | n/a |
Number: | Start Date: (UTC) | End Date: (UTC) | Condition: |
---|---|---|---|
04/138 | 04/23/2025 1230 | 06/30/2025 2359 | OBST TOWER LGT (ASR 1247817) 463915.70N0680256.50W (2.1NM S PQI) 655.2FT (205.1FT AGL) U/S |
Light Aircraft 1500 MSL
Type: | Frequency / Phone: | Sector / Comments: | Call Sign: |
---|---|---|---|
AWOS-3PT | 118.025T (207) 764-7248 | ||
Clearance Delivery Phone | (603) 879-6859 | Boston ARTCC | |
CTAF | 122.8 | ||
UNICOM | 122.8 |
